Forklift Attachments

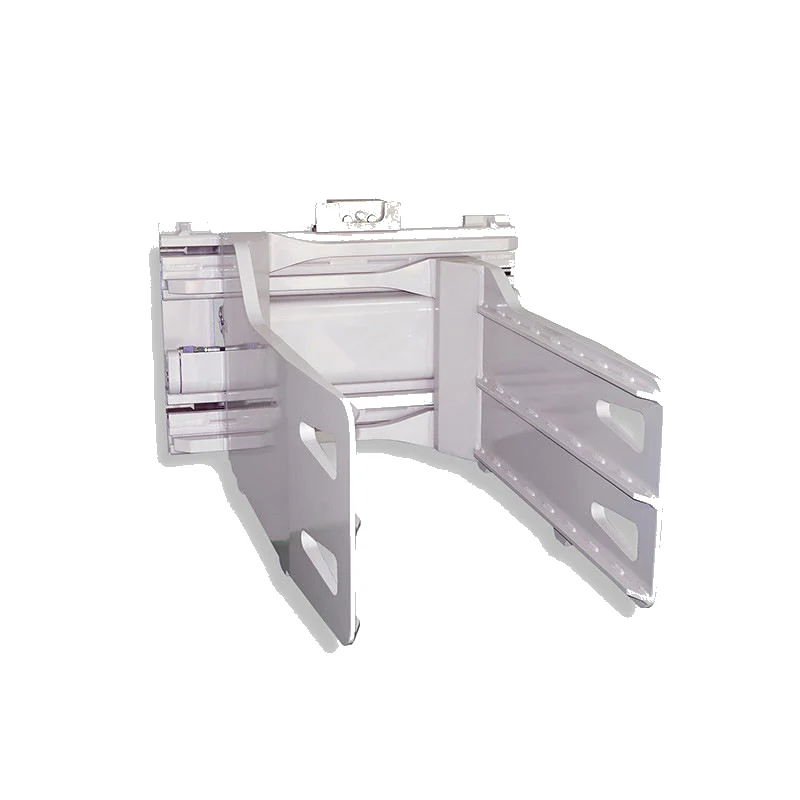

Bale Clamp
Factory-direct equipment with configurable specifications for your operating conditions.
Request pricing →PRODUCT OVERVIEW
Description
Our Bale Clamp is a specialized forklift attachment engineered for safe and efficient handling of soft bales, including cotton, hay, wool, cardboard, and recycled materials. Manufactured with heavy-duty steel construction and precision hydraulic components, this clamp delivers exceptional grip strength and gentle handling to prevent product damage during transportation and stacking.
TECHNICAL DATA
Specifications
Specifications may be configured for your application.
| Parameter | Value |
|---|---|
| Material | Q355B High-Strength Steel (Frame), Hardened Alloy Steel (Clamp Arms) |
| Clamping Range | 300mm - 1200mm (11.8" - 47.2") |
| Maximum Clamping Force | 8,000 N (1,798 lbf) |
| Operating Pressure | 180 - 250 bar (2610 - 3625 psi) |
| Weight | 450 kg (992 lbs) |
| Compatible Forklift Capacity | 2.0 - 5.0 Ton (4409 - 11023 lbs) |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Certifications | ISO 9001, CE, ANSI/ITSDF B56.1 |
